1800mm/ 2000mm/ 2200mm Extra Wide Rubber Conveyor Belt

FOB Reference Price:Get Latest Price
US $5-50 / Meter | 20 Meter/Meters 2200mm Extra Wide Conveyor Belt (Min. Order)
Supply Ability:
5000 Meter/Meters per Day 2200mm Extra Wide Conveyor Belt
Port:
Tianjin port
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Huayue
Model Number:
B400-B2200
Type::
EP / NN / CC / Steel /pvc /pvg
Certificate:
ISO9001:2008, BV certification
Standards:
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc
Condition:
New
Scope:
Belt Conveyor, Screw Conveyor,and so on
length:
Endless or length
performance:
heat resistant, cold resistant, oil resistant, aid and pH resistance
other:
rubber and cloth
Guarantee:
1 year (wear parts excluded)
Products:
Hot Sale
Packaging & Delivery
Packaging Details
PVC water-proof cloth.
Delivery Time
3days after receiving full payment
1800mm, 2000mm, 2200mm Extra Wide Rubber Conveyor Belt

We are one of the reputed manufacturers of Industrial Conveyor Belt in China which is in high demand not only in the homeland but across the globe. We have got numerous repeated orders for the Industrial Conveyor Belt from our clients. That has been possible due to the unmatched quality and unsurpassable performance of our conveyor belts. Our range of conveyor belts are highly appreciated by our clients due to its high abrasion feature and availability in various sizes and designs. These are dimensionally accurate as per international standards.



Top 5 conveyor belt manufacture in china

Huayue Conveyor Belt Competitive Advantage

1. Type of Belting: EP, Nylon, Steel cord, Cotton Conveyor belt

2: width: 400-2200mm

3. Thickness: 4-30mm

4. Working Temperature : 0 - 70C

5. Abrasion resistant & High Tensile Strength

6. ISO9001:2008, Bureau Veritas Certificate.

7. More Than 30 years professional experience.(Since 1982)

8. International Standard:  DIN, BS, AS, RMA, AS, JISK, SABS etc





Huayue Company are manufacturers and exporters of rubber conveyor belts in China. “Huayue” industrial conveyor belts constitute nylon/nylon (NN), polyester/nylon (EP), cotton/nylon (CN), cotton/cotton (CC). It has carcass with straight ply, stepped ply, reverse stepped ply, breaker ply and mould edge/cut edge where required.


A. Nylon/Nylon (NN) Carcass

  • Lower longitudinal elongation
  • Higher tensile strength
  • Good flexibility and troughability
  • Good resistance to mildew, moisture and rotting
  • Good resistance to edge wear
  • Excellent impact resistance
  • Unaffected by alkalies and weak acids
  • Suitable for conveying material over long distances


B. Polyester/Nylon (EP) Carcass

  • Besides having the advantages as listed for NN carcass belts, EP belts have the additional advantage of lower longitudinal elongation.




C. Cotton/ Cotton (CC) Carcass

  • Suitable for most applications
  • Good bonding for rubber
  • Good fastener holding properties

 D. Steel cord (ST) Conveyor Belt

  • ST630-ST5400
  • Abrasion resistant & High Tensile Strength
  • Long distance to transport

Fabric Features:



1800mm, 20000mm, 2200mm Extra Wide Conveyor Belt used by the multi-layer polyester (or to the polyester, polyester weft for amine) bond canvas with a certain way, up and down the high-strength plastic cover, good wear-resistant flexible rubber.



Index Description

 Strength between layers

  Cover layer and fabric layer

Thickness of cover layer≤1.5mm

Thickness of cover layer >1.5mm

Sample average value

4.5N/mm

3.2N/mm

3.5N/mm



Fabric Material

Fabric structure

Fabric code

No.of fabric plies

Width

mm

Length
m

Cover thickness mm



Warp

Weft



Top

Bottom



Polyester canvas

Polyester

Nylon of

Polyester

EP100

2-10

350-2000

10-400

2-12

1-5





EP150

2-10

350-2000

10-400

2-12

1-5





EP200

2-10

350-2000

10-400

2-12

1-5





EP250

2-10

350-2000

10-400

2-12

1-5





EP300

2-6

350-2000

10-400

2-12

1-5





EP400

2-6

350-2000

10-400

2-12

1-5





EP500

2-6

350-2000

10-400

2-12

1-5





EP600

2-4

350-2000

10-400

2-12









Our Conveyor Belt Products

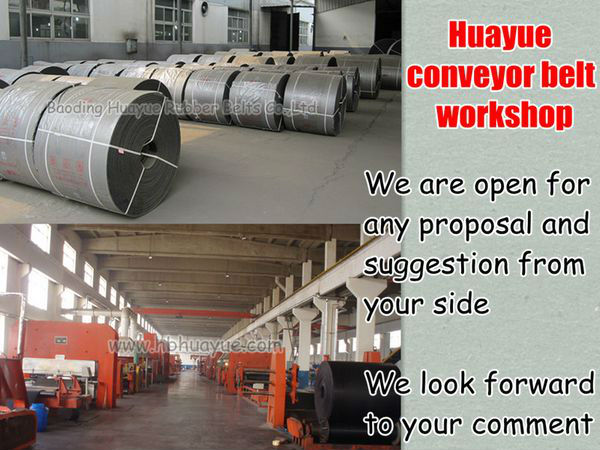

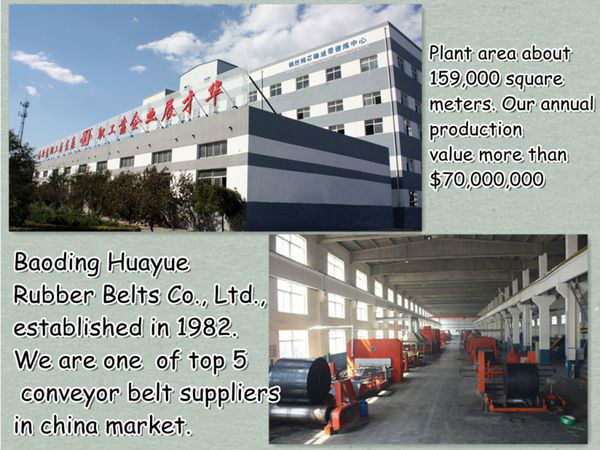

Baoding Huayue Rubber Belts Co.,Ltd Work shop

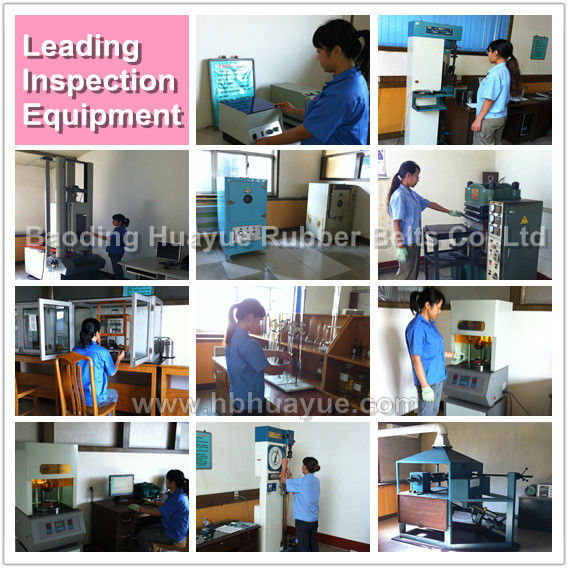

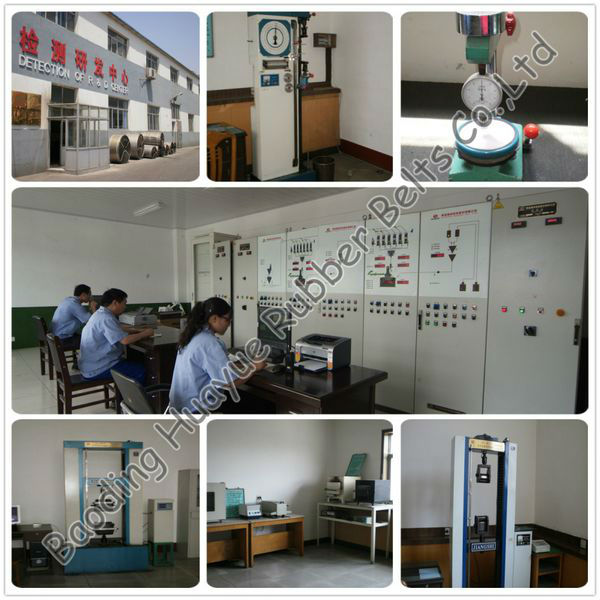

Testing, R&D center

Honor

Certificate

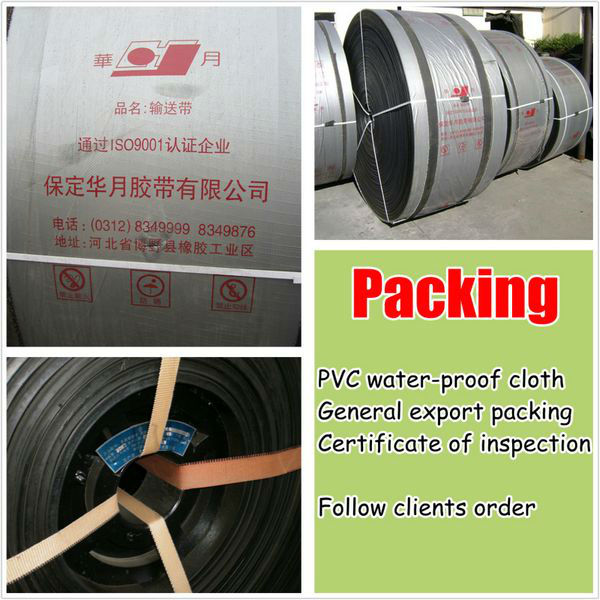

Packing

1800mm, 2000mm, 2200mm Extra Wide Rubber Conveyor Belt
For more details,please inquiry us!



Polyester conveyor belt, (EP)
Nylon conveyor belt, (NN)
Cotton conveyor belt, (CC)
Sidewall conveyor belt (SW)
Steel Cord conveyor belt ( ST )
Chevron conveyor belt, (C5 C10 and C15)
Oil Resistance conveyor belt, (OR and MOR)
Hot Resistance conveyor belt, (HR)
Fire Resistance conveyor belt, (FR/PVC/PVG)
Heat Resistance conveyor belt, (HR/ FR)
Cold Resistance conveyor belts, (CR)
Pattern conveyor belt ( 30+ Moulds)
Metal Mesh conveyor belt (Heat resistant temp until 800c)
Endless belts
Conveyor roller, idler
Conveyor Pulley, frame,bracket etc
